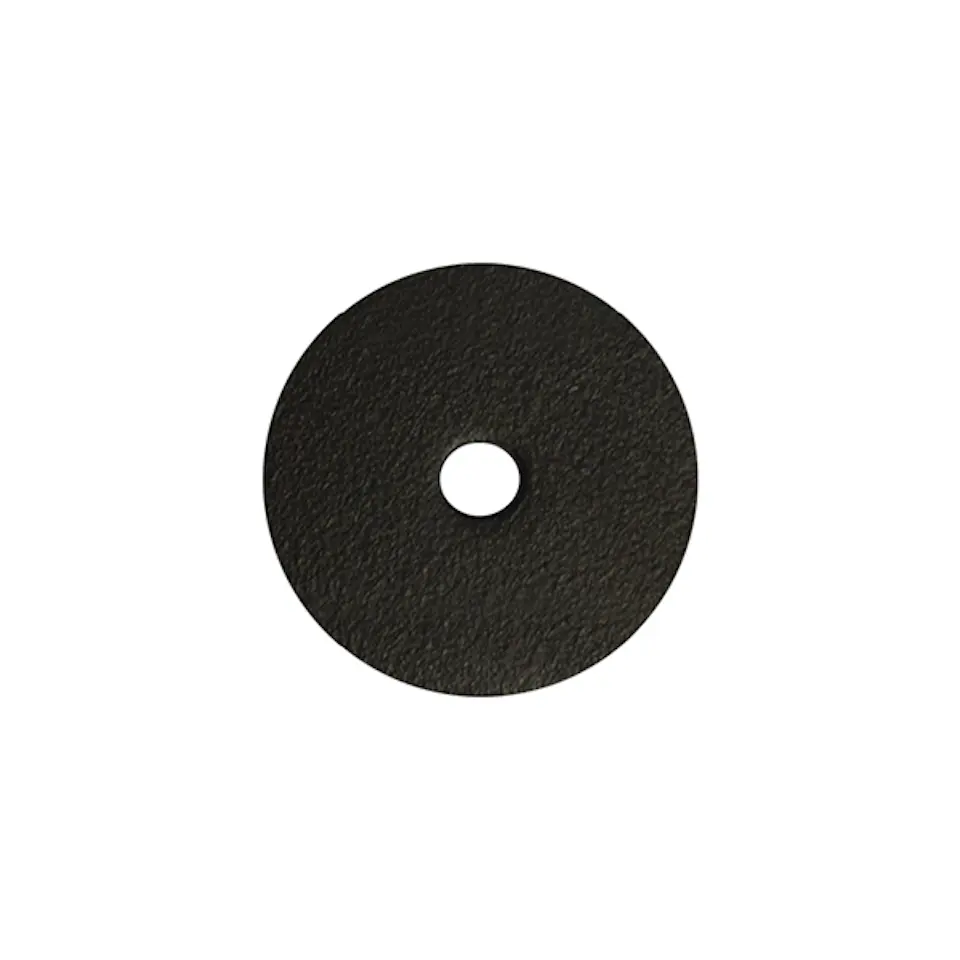

Metal washer for reinforcing the mounting points of the guide rail

However, with walls built or clad with soft building materials such as plasterboard, deformation can occur, caused by the sleeves sinking into the wall under the influence of the door's weight.

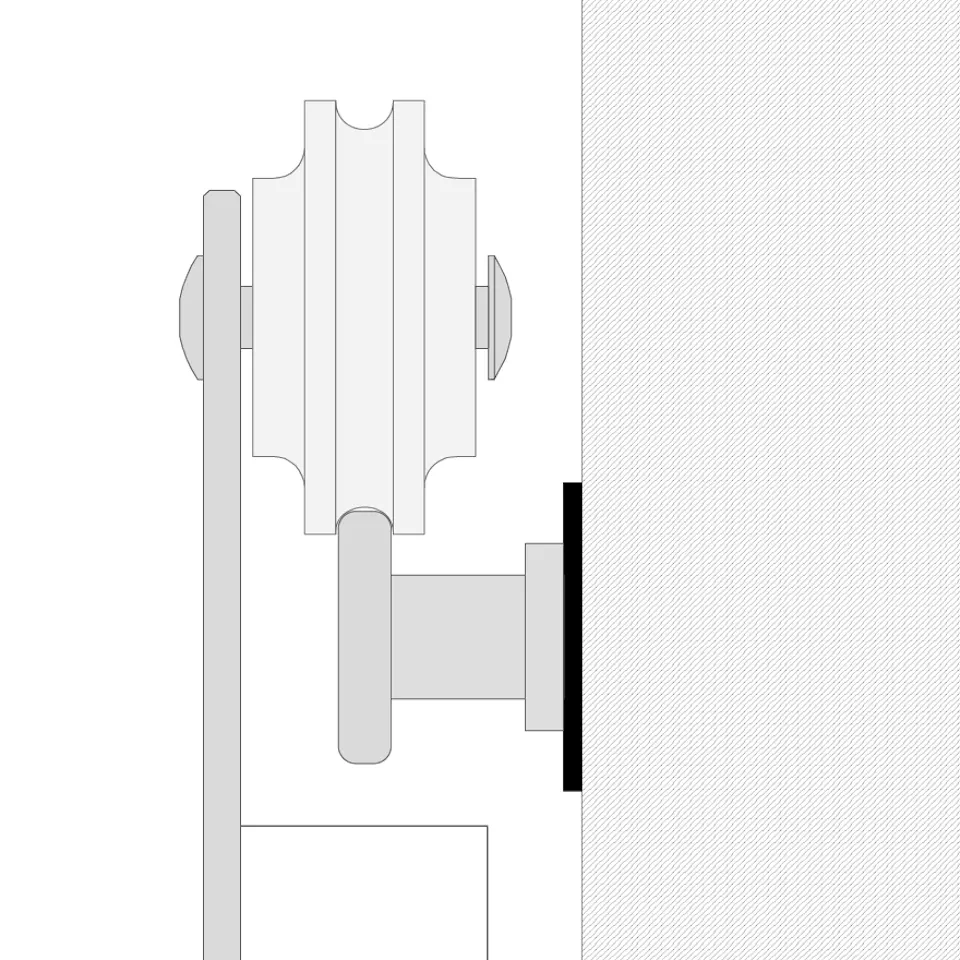

To minimize this problem, we recommend using reinforcements in the form of metal washers. These plates are installed under the sleeve and distribute the pressure evenly over a larger area of the wall. This eliminates the risk of deformation and increases the strength of the fastening. Metal washers can be used with sliding doors of varying weight and dimensions.

The complete set contains

• metal washers in the number of holes in the guide rail

How do you calculate the length of the guide rail?

The number of metal washers in the set depends on the number of holes in the guide rail. The number of these holes in turn depends on the length of the guide rail.

The length of the guide rail depends on the width of the door leaves. As standard, we assume that it should be twice as long as the width of the door itself.

Length of the guide rail for standard single doors:

• for 70 cm doors --> 140 cm
• for 80 cm doors --> 160 cm
• for 90 cm doors --> 180 cm
• for 100 cm doors --> 200 cm
• for 110 cm doors --> 220 cm
• for 120 cm doors --> 240 cm

Length of the guide rail for standard double doors:

• for 2x45 cm doors --> 180 cm
• for 2x55 cm doors --> 220 cm
• for 2x60 cm doors --> 240 cm
• for 2x70 cm doors --> 280 cm
• for 2x80 cm doors --> 320 cm
• for 2x90 cm doors --> 360 cm
• for 2x100 cm doors --> 400 cm
• for 2x110 cm doors --> 440 cm
