Ceiling bracket

The ceiling bracket for the sliding-door system is used when the door opening reaches the ceiling vault or when there is no space above the door opening to mount the sliding system (the lintel is too low). The ceiling bracket is perfectly suited for ceiling mounting of standard single doors as well as double sliding doors.

The ceiling bracket fits our sliding-door systems.

The single set contains:

• 1 x ceiling bracket for mounting the guide rail
• fixing elements: screws and dowels

The number of hangers required depends on the number of holes in the guide rail.

Number of hangers required for the Standard system:

• 140 cm --> 3 hangers
• 160 cm – 180 cm --> 4 hangers
• 200 cm – 220 cm --> 5 hangers
• 240 cm – 280 cm --> 6 hangers
• 320 cm – 360 cm --> 8 hangers
• 400 cm – 440 cm --> 10 hangers

Number of hangers required for the Smart system:

• 140 cm – 160 cm --> 4 hangers
• 180 cm – 240 cm --> 6 hangers
• 280 cm – 320 cm --> 9 hangers
• 360 cm – 440 cm --> 12 hangers

The complete set containing the ceiling-mounted sliding system:

• 1 x sliding door set (doors + hangers + guide rail)
• 3-12 x ceiling bracket (depending on the number of holes in the guide rail)

Material

• powder-coated steel (ST235)

Specification and assembly

• Technical drawing of the ceiling hanger - dimensions
• Assembly instructions - ceiling bracket

Technical details

• Main dimensions: 4 cm x 18 cm x 6.4 cm
• Point load of 40 kg
• Ceiling brackets fit our sliding-door systems

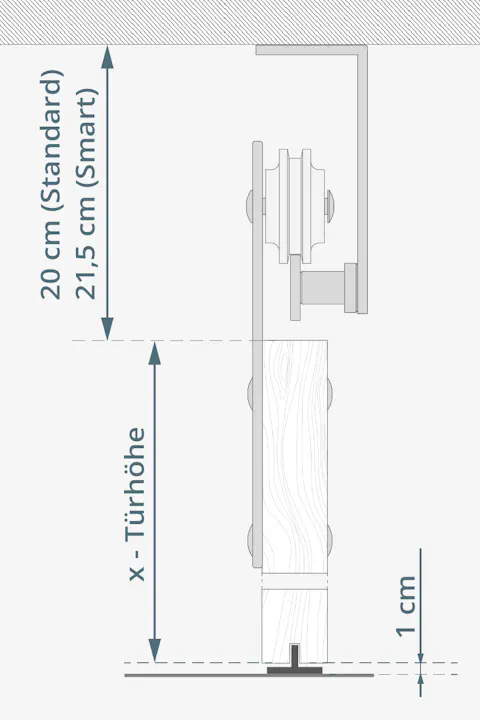

Determine the right door height

To determine the height of the door (X) that can be mounted on ceiling brackets, first carefully measure the distance between the ceiling and the floor. Then subtract 21 cm for the Standard system or 22.5 cm for the Smart system from this distance to obtain the maximum door height (assuming the distance between ceiling and floor is the same along the entire length of the wall).
